HEZ ezSWITCH Kit - Green Led

The HEX ezSWITCH is a compact, handlebar-mounted button with a built-in LED indicator. It’s a versatile smart switch that connects directly to the HEX ezBUS ‘white’ circuit, allowing you to control various accessories connected the user’s same Accessory Manager.

The ezSWITCH is a versatile handlebar switch that can be customised to control various aixiliary lights and outputs, connected to the same Accessory Manager.

The HEX ezSWITCH includes a single expander circuit, accessible via the white 2-pin JWPF connector. This functions like the Red, Blue, or Yellow outputs on the HEX ezCAN, but with two key differences:

• 2A Max Output – The circuit is protected by HEX’s proprietary fusing
  algorithm, but the fuse is fixed at 2A.
• 2-Wire Connection – Unlike the main ezCAN outputs, this does not support
  3-wire lights in their 3-wire mode.

While this output can be configured for any ezCAN function, it is most commonly used as a brake light output.

Each ezSWITCH kit contains:

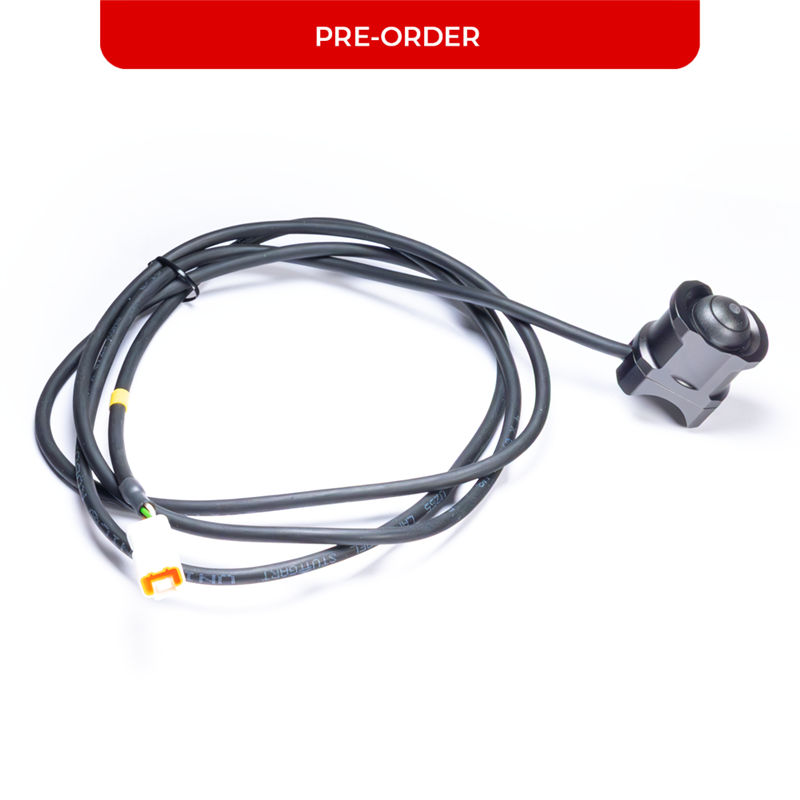

• 1x Handle bar switch (with integral cable)

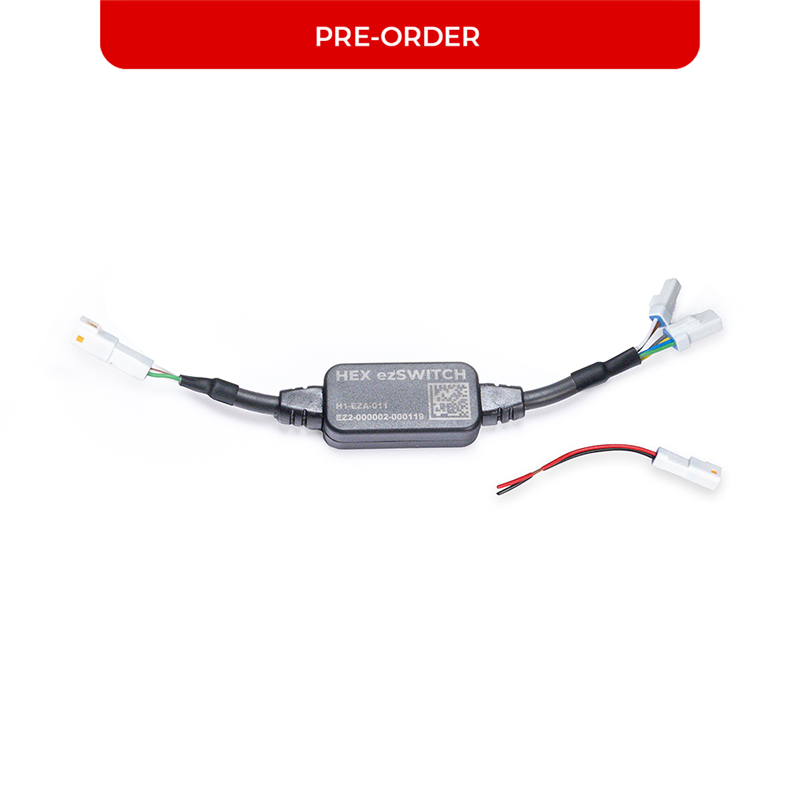

• 1x ezSWITCH controller
• 1x 2-wire JWPF stub connector
• 1x MT – 1xJWPF adapter cable
• 3x 4.8mm x 200mm Cable ties
